Screws and Nuts Box

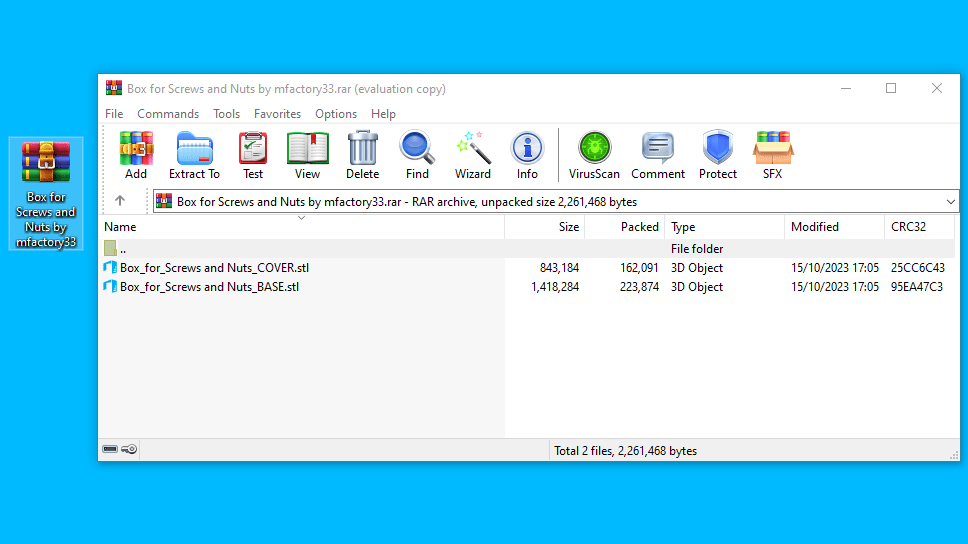

(Use WinRaR to extract files)

General details:

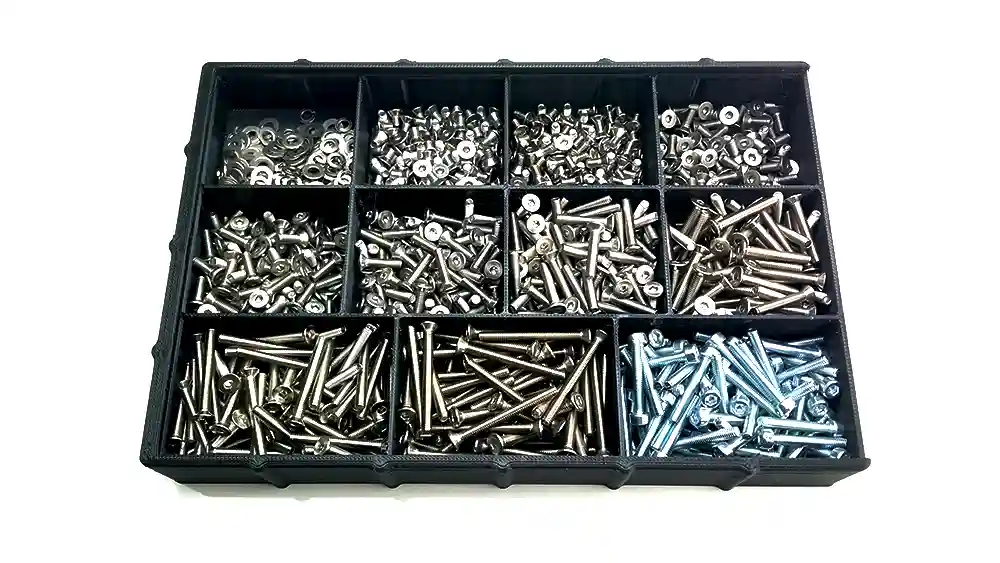

– The box contains 11 different packs for 11 different screws nuts or washers.
– Size: 120x180x25 mm (LxWxH)
– Does require some assembly
– 2 print in place parts included

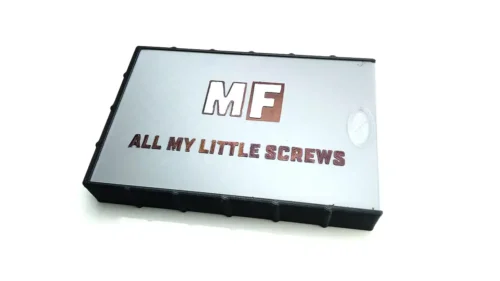

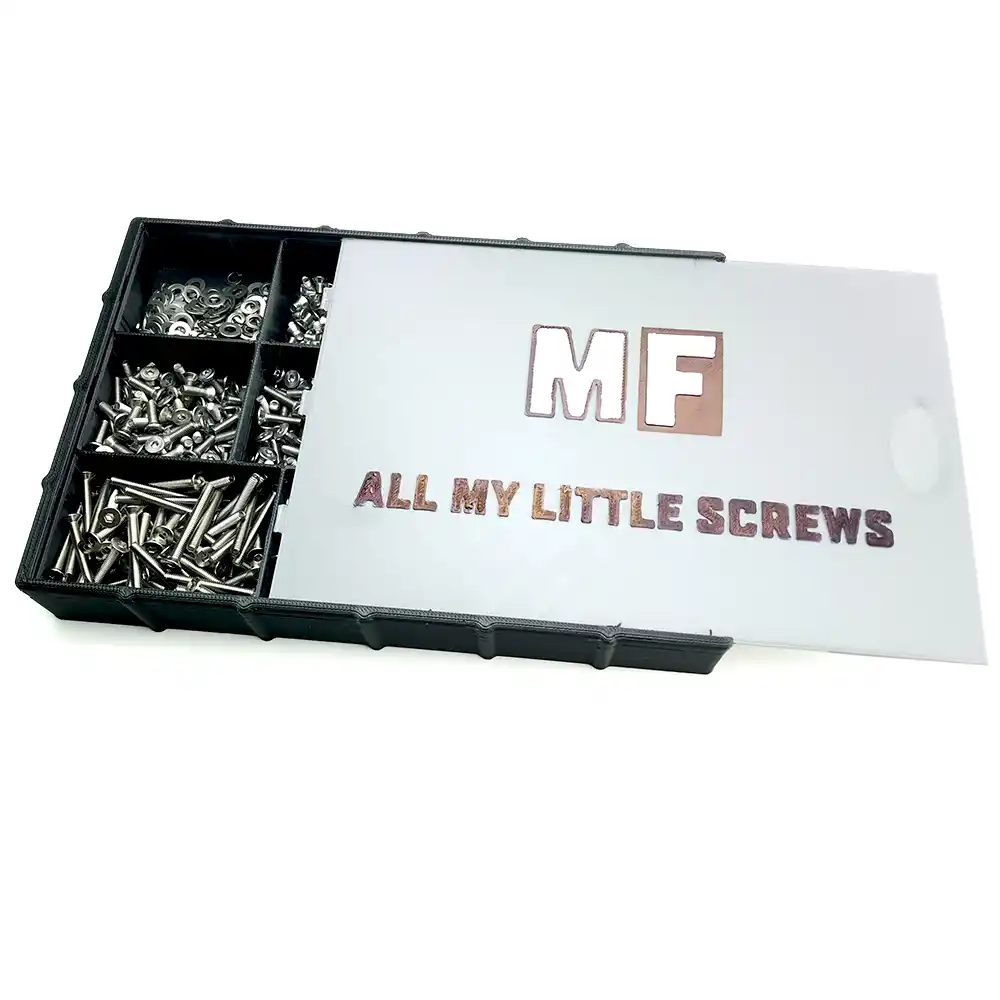

– Assembly: Slide the top lid on top of the base piece.

3D Printing instructions:
– Print bed needed: 200x200mm
– Infill: 20%
– Layer height: 0,2 mm
– Noozle: 0,4 mm
– Print Speed: 40-60 mm/s
– Support: no supports / no support needed
– Material: PLA, ABS (it was designed for FDM printing.)
– Cooling Fan Speed: PLA 100%, ABS LOW or OFF to prevent warping
– Extruder (Hot End) Temperature: PLA (190-220°C), ABS (220-250°C)
– Bed Temperature: PLA (50-60°C), ABS (90-110°C)
– Bed Adhesion: 3DLAC Spray adhesive (For perfect adhesion to the printing bed and to avoid warping)
– Neither Rafts nor Brims needed for printing
– Slicing made with Prusa Slicer

We 3D printed it with an Ender 3 V2 Neo

Abbreviations:
STL – (STereoLitography)
ABS – (Acrylonitrile Butadiene Styrene)
PLA – (Polylactic Acid)
FDM – (Fused Deposition Modeling)
