This is how we did it. With our LEGACY Chassis v.3.1

What a classic from 2000! All Europeans know this car, The magical French Super Star. If I’d be American I would definitely check this out too!

As always we let you be the judge to tell how well we could capture it.
Our aim was to get it as much authentic as possible.

Testing Video

Download body kit
STL files archived with WinRAR

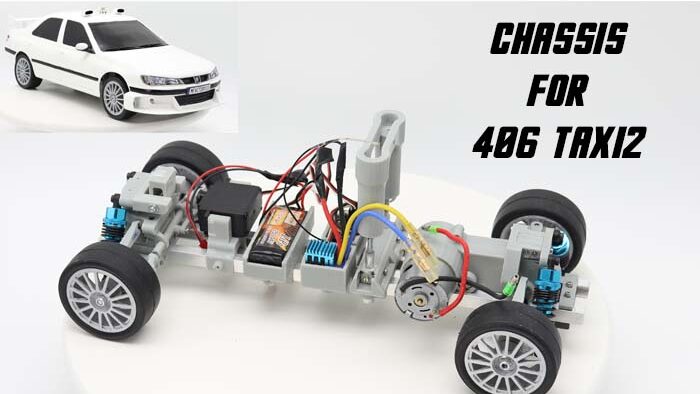

Chassis v.3.1 (Peugeot 406)

This is a Legacy Chassis! Click to v.3.3

Chassis dimensions

We strive for an ultimate universal chassis because we wanna use it under many 3D printed car bodies. So that’s why the slideable parts.
The chassis is built on a 2 (aluminium) U profile (8×10 mm) with bought and 3D printed parts.

3D printed parts: Housing of the electric motor, housing of the battery, most of the steering system…

Bought parts are:
 The suspension (length 60 mm), the different wheel rims with the tires, the servo, the receiver, drive shaft and the differential is from Tamiya, the electric motor (17000 rpm), and of course screws (M2, M3) and the ball joints (M3).

Download CHASSIS
STL files archived with WinRAR

The whole design is made for scale 1:10
This is our third model’s self-developed Chassis.
It’s quite, sturdy now as it can be jumped with

3D printing settings we used

3D Printer: Zortrax M200 plus
Technology: LPD
Used material: ABS filamen
Slicer program: Zortrax Z-SUITE

Settings:
Infill: 20%
Recomended layer height: 0.19 mm
Support was set automatically by the program

Got a question about building Know-How? Ask us on here at the bottom of this page!

Gearbox

Non-printed parts and general INFO of 3Dprinted RC Peugeot 406 from TAXI2

Shock absorbers

Hole to hole distance: 60 mm
Get it on ebay

Rocking arm screws

2mm nail 35-40mm long. Threaded (DIY), used as a screw. Note: Spring washer used!

Tires

1:10 Slick Tamiya 50547 wide / 50454 normal tires with the original 3d printed ICE charger rims

Ball cups for steering

4 mm ball with 3mm screw thread.
Tamiya: 50590

Servo

 Feetech FS5103B
get it on ebay

Wheel adapter

Tamiya: 53056
get it on ebay

Rear Drive Shaft

Tamiya: 51216 TA05
A front drive shaft must be shortened
Get it on ebay

Flange lock nut

Tamiya: 53024

Differential bevel gear set

Tamiya: 50602

Get it on ebay

Touring car hard joint cup set

Tamiya: 53218

TG10 Wheel Axle 2 pcs

Tamiya: 50823

U profile trails 2 pc

8×10 mm from hardwarestore

Click here

Motor 540

  7.2 – 12 V , 20.000 rpm

Body mounting system

Middle and Frontal mount developed by us

Vinyls used for Lights

Lights and other signs printed on adhesive paper

5x11x5 bearing

Bearing for gearbox
get it on ebay

4x10x4 bearing

Front wheel bearing

Front Grille

Mosquito net used for front Grille raw material from Hardware Store

Filling unwanted cracks

Tamiya: 87053

Assembly

Here are the bigger body parts. This has a bit more pieces, because of our printer’s hectic manner.(Smaller parts, less exploding heads at the end of print sessions 🙂

Chassis assembly Video

Most used tools

Scalpel&Allenkeys&RASPs

Scalpel for removing print support. Keys for screws. Every kind of Rasps to get the surface smooth and even.

Super glue

Both Gel and Liquid ones. Use GEL when putting parts together. When it holds use LIQUID on the surface.

Glue Gun

It’s adhesive sets very quickly. We used it only inside the body kit, because on the surface leaves nasty traces.
