How to build a custom 3Dprinted RC Dom’s Dodge ICE Charger from FF8?
This is how we did it. With our LEGACY Chassis v.4.1
What a car from Fast and Furious 8! All car movie fans know this car, The Ice Charger. This is a real american muscle turned into something more:)
As always we let you be the judge to tell how well we could capture it.
Our aim was to get it as much authentic as possible.
Testing Video
Download body kit
STL files archived with WinRAR

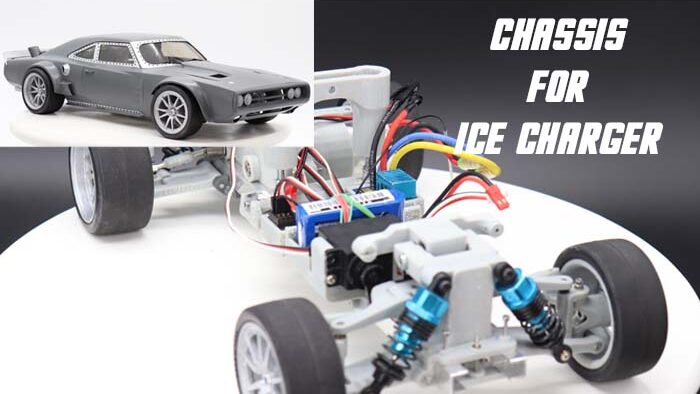

Chassis v.4.1 (ICE Charger)
This is a Legacy Chassis! Click to v.4.3
Chassis dimensions
| Wheelbase | 259mm |
| Front Wheel Track | 185mm |
| Rear Wheel Track | 190mm |
We strive for an ultimate universal chassis because we wanna use it under many 3D printed car bodies. So that’s why the slidable parts
The chassis is built on a 2 (aluminium) U profile (8×10 mm) with bought and 3D printed parts.
3D printed parts: Housing of the electric motor, housing of the battery, most of the steering system…
Bought parts are:
The suspension (length 60 mm), the different wheel rims with the tires, the servo, the receiver, drive shaft and the differential is from Tamiya, the electric motor (17000 rpm), and of course screws (M2, M3) and the ball joints (M3).
Parts List of Chassis v.4.1 (1st generation)
Screws and nuts:
M4x40 1 piece + M4 nut
M4x~25 2 piece
M2x12 ~50 pieces
M2x16 ~16 pieces
M2x20 ~16 pieces
M2x8 ~ 8 pieces
Nails:
D2x38 4 pieces
Threaded rods:
M4 2 pieces 47mm long
Bearings:
4x10x4 4 pieces
5x11x5 8 pieces
Download CHASSIS
STL files archived with WinRAR
The whole design is made for scale 1:10
This is our third model’s self-developed Chassis.
It’s quite, sturdy now as it can be jumped with
3D printing settings we used
3D Printer: Zortrax M200 plus
Technology: LPD
Used material: ABS filamen
Slicer program: Zortrax Z-SUITE
Settings:
Infill: 20%
Recomended layer height: 0.19 mm
Support was set automatically by the program
Got a question about building Know-How?
Ask us at the bottom of this Page!
Gearbox
Non-printed parts and general INFO of 3Dprinted RC Dom’s Dodge ICE Charger
Rocking arm screws
2mm nail 35-40mm long. Threaded (DIY), used as a screw. Note: Spring washer used!
Tires
1:10 Slick Tamiya 50547 wide / 50454 normal tires with the original 3d printed ICE charger rims
Ball cups for steering
4 mm ball with 3mm screw thread.
Tamiya: 50590
Flange lock nut
Tamiya: 53024
Touring car hard joint cup set
Tamiya: 53218
TG10 Wheel Axle 2 pcs
Tamiya: 50823
Body mounting system
Middle and Frontal mount developed by us
Front Grille
Mosquito net used for front Grille raw material from Hardware Store
Motor 540
7.2 – 12 V , 20.000 rpm
4x10x4 bearing
Front wheel bearing
Body Assembly
Here’s a full assembly video! Enjoy:)
Chassis assembly Video
Here’s a full assembly video of an older version, not so many things differ so you’ll get to see what matters.
Most used tools
Scalpel&Allenkeys&RASPs
Scalpel for removing print support. Keys for screws. Every kind of Rasps to get the surface smooth and even.
Super glue
Both Gel and Liquid ones. Use GEL when putting parts together. When it holds use LIQUID on the surface.
Glue Gun
It’s adhesive sets very quickly. We used it only inside the body kit, because on the surface leaves nasty traces.
